Users have the ability to load in reference layers to UNE for ArcGIS applications.

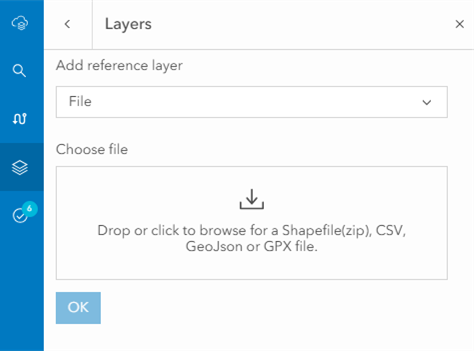

The Add reference layer file option within the layers panel allows for uploading of various supported file types including:
- Shapefile (zip)
- CSV
- GeoJSON
- GPX
Shapefile and GeoJSON formats are limited to a maximum of 4,000 records. CSV format is limited to a maximum of 1,000 records. The maximum upload size is 2MB for shapefiles and 10MB for all other supported file types.
Clicking OK upon file selection will populate a new reference layer in the layer panel within the application.
